Projectile

A.smooth B.with groove C.grooved D.undulated E.diamond knurled

10N/1000GR;
19N/1900GR;
22N/2200GR;
25N/2500GR;
30N/3000GR;
25N/3500GR;
25N/4000GR;
25N/4500GR;

Quantity:

Contact Now

add to cart

This product series consists of projectiles, which are categorized into the following types based on the clamping surface:
    •    A. Smooth
    •    B. With groove
    •    C. Grooved
    •    D. Undulated
    •    E. Diamond knurled

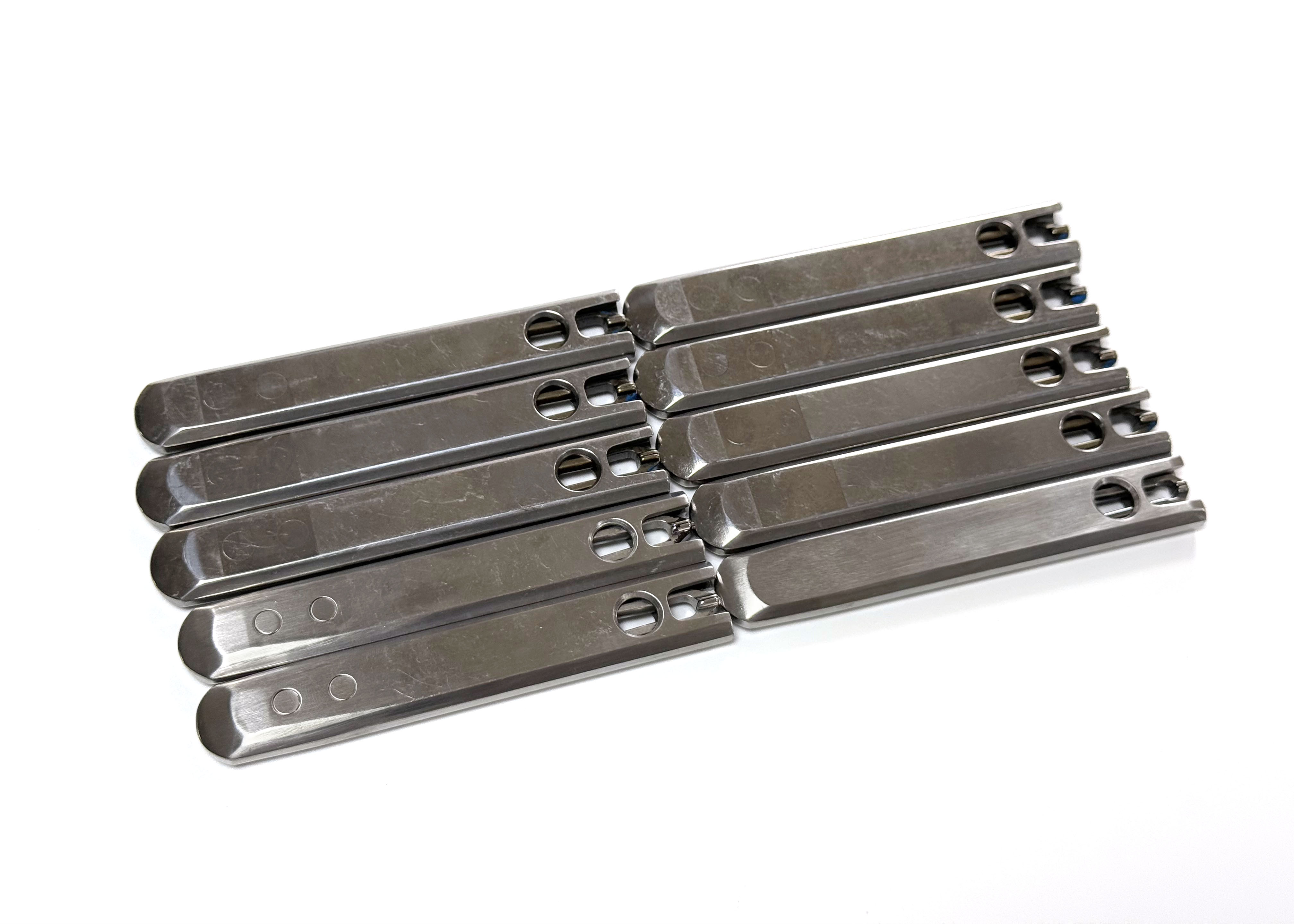

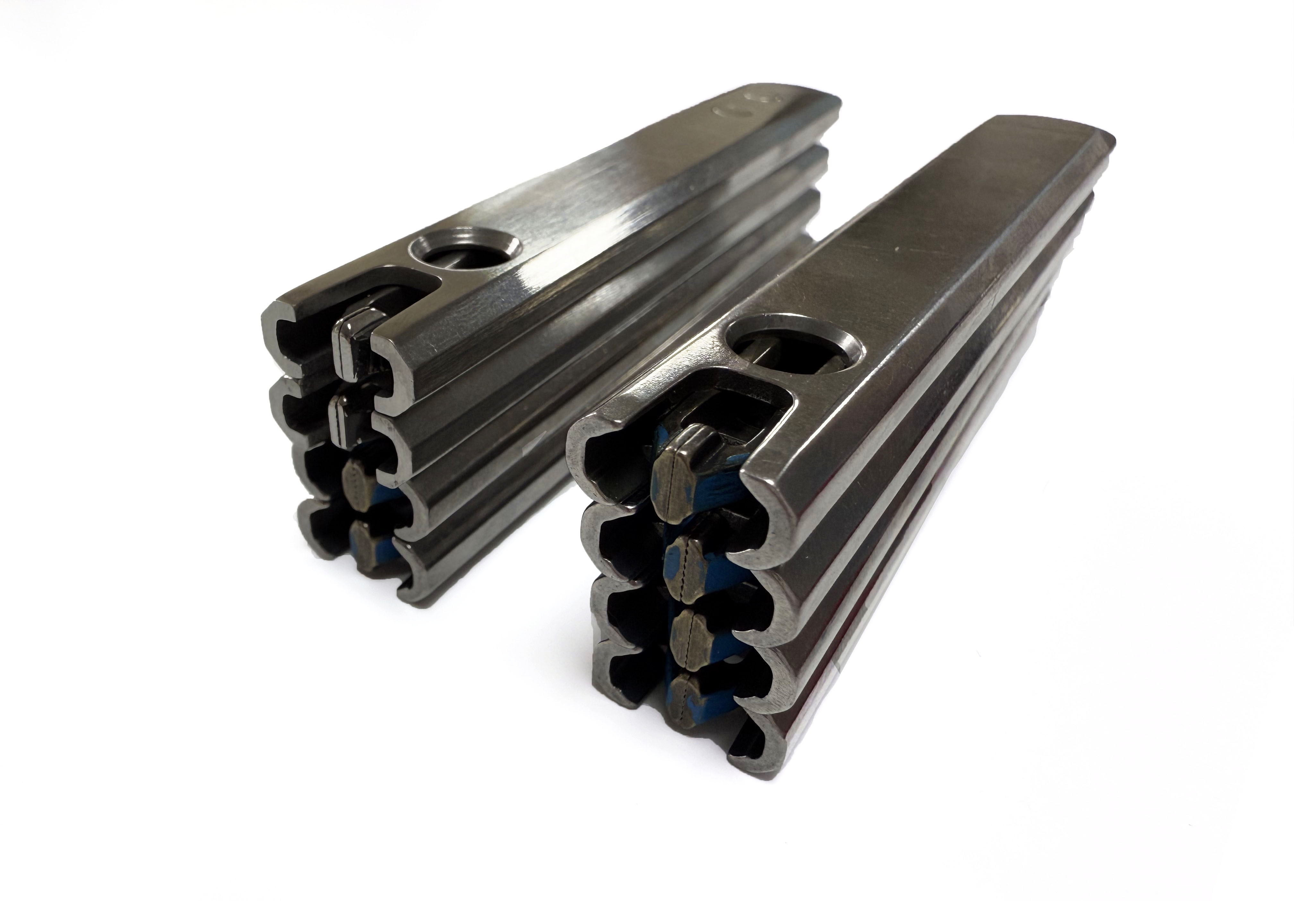

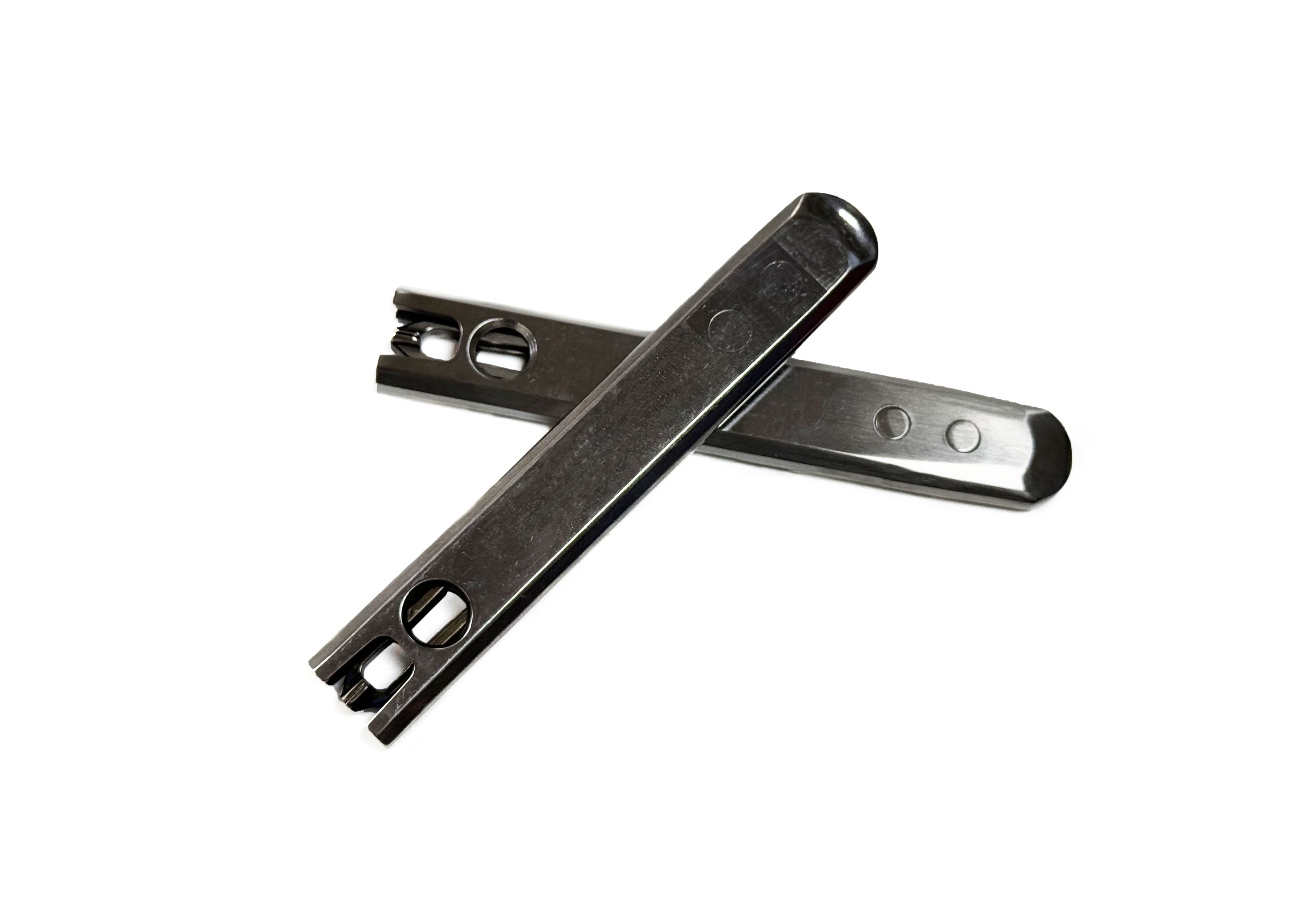

sulzer loom parts,projectile,projectile body 911812251,911812198,911812027,911812051,911812199,911812374,911812252.

1. Multiple Surface Treatment Options
This projectile series offers five surface types—smooth, with groove,grooved,undulated and diamond knurled—to meet the friction and stability requirements of different clamping environments. These options effectively prevent slipping or displacement, ensuring secure workpiece fixation.

2. Wide Range of Clamping Forces
Clamping forces ranging from 1000GR to 4500GR (corresponding to different Nvalues) are available, accommodating applications from light to medium-high load clamping. This versatility meets precise clamping force demands across various working conditions

3. Lightweight yet High-Strength Material Design
Individual weights vary from 36G to 60G, ensuring sufficient strength and wear resistance while reducing overall system load. This enhances operational efficiency and extends machinery service life.

4. Standardized Sizes for Easy Installation
The products adhere to standardized dimensions (e.g., 2.2×3, 2.2×4, 3.8×5, 4×5), enabling quick installation and replacement across different equipment or fixtures. This minimizes downtime and boosts production efficiency.

5. Exceptional Durability and Stability
Material selection and manufacturing processes ensure consistent friction performance and deformation resistance even under high-intensity use. This significantly extends service life while reducing maintenance frequency and costs.

PS00011	Projectile	911812211	Smooth 10N/1000GR Without,normal	2.2*3 D1
PS00012	Projectile	911812201/911812364	Smooth 10N/1000GR without,light	2.2*3 D1
PS00013	Projectile	911812212	Smooth 19N/1900GR Orange,normal	2.2*3 D1
PS00014	Projectile	911812202	Smooth 19N/1900GR Orange,light	2.2*3 D1
PS00015	Projectile	911812213/911812013/ 911512075/911812358	Smooth 22N/2200GR White,normal	2.2*3 D1
PS00016	Projectile	911812203	Smooth 22N/2200GR White,light	2.2*3 D1
PS00017	Projectile	911812214/911812014/ 911812085/911812323	With groove 22N/2200GR White,normal	2.2*3 D1
PS00018	Projectile	911812204	With groove 22N/2200GR White,light	2.2*3 D1
PS00019	Projectile	911812215	With groove 25N/2500GR Light blue,normal	2.2*3 D1
PS000110	Projectile	911812205/911812005/911812350	With groove 25N/2500GR Light blue,light	2.2*3 D1
PS000111	Projectile	911812216	Grooved 25N/2500GR Light blue,normal	2.2*3 D1
PS000112	Projectile	911812206	Grooved 25N/2500GR Light blue,light	2.2*3 D1
PS000113	Projectile	911812217	Undulated (weave) 25N/2500GR Light blue, light	2.2*3 D1
PS000114	Projectile	911812218	Diamond Knurled 25N/2500GR Light blue, normal	2.2*3 D1
PS000115	Projectile	911812208/911812008	Diamond Knurled 25N/2500GR Light blue, light	2.2*3 D1
PS00021	Projectile	911812251/911812346	Smooth 10N/1000GR Without, normal	2.2*4 D12
PS00023	Projectile	911812198/911812370	Smooth 22N/2200GR White,light	2.2*4 D12
PS00024	Projectile	911812345	Smooth 22N/2200GR White,light	2.2*4 D12
PS00025	Projectile	911812027	Smooth 22N/2200GR White,light	2.2*4 D12
PS000251	Projectile	742076507/270005098	2.2x4 ligh blue 2500g D1 smooth P7200/P7300
PS00026	Projectile	911812051	With groove 22N/2200GR White, normal	2.2*4 D12
PS00027	Projectile	911812199/911812354/911812343	With groove 22N/2200GR White, light	2.2*4 D12
PS00028	Projectile	911812374	With groove 25N/2500GR light blue, normal	2.2*4 D12
PS00029	Projectile	911812252	With groove 25N/2500GR Light blue,light	2.2*4 D12
PS000291	Projectile	911812329	With groove 25N/2500GR Light blue,light	2.2*4 D12
PS000211	Projectile	911812087	Grooved 25N/2500GR Light blue, normal	2.2*4 D12
PS000213	Projectile	911812192	Grooved 25N/2500GR Light blue,light	2.2*4 D12
PS000212	Projectile	911812156	Grooved 30N/3000GR Brown,light	2.2*4 D12
PS000219	Projectile	911812253	Diamond Knurled 22N/2200GR Without,normal	2.2*4 D12
PS000217	Projectile	911812089	Diamond Knurled 25N/2500GR Light blue, normal	2.2*4 D12
PS000218	Projectile	911812194/911812328/911812343/ 911812352/270005099	Diamond Knurled 25N/2500GR Light blue,light	2.2*4 D12
PS000116	Projectile		Diamond Knurled 30N/3000GR Brown	2.2*4 PU D1
PS000214	Projectile	911812289	Grooved 25N/2500GR Light blue,light	3.8*5 D12
PS000215	Projectile	911812291	Undulated (weave) 25N/2500GR Light blue,light	3.8*5 D12
PS000216	Projectile	911812359	Undulated (weave) 30N/3000GR Brown,normal	3.8*5 D12
PS000220	Projectile	911812287	Diamond Knurled 22N/2200GR White,light	3.8*5 D12
PS000221	Projectile	911812288	Diamond Knurled 25N/2500GR Light blue,light	3.8*5 D12
PS000224	Projectile		Diamond Knurled 3500GR	3.8x5 D12
PS000210	Projectile	911812286	With groove 25N/2500GR Light blue,light	3.8*5 D12
PS000222	Projectile	911812365	with groove25N/2500Gram heavy	3.8*5 D12
PS000223	Projectile		Smooth With Clamping 2200GR	3.8x5 P7300
PS00031	Projectile	911812108	Smooth 22N/2200GR White,normal	4*5 D2
PS00032	Projectile	911812105	Grooved 22N/2200GR White,normal	4*5 D2
PS00033	Projectile	911812106	Grooved 25N/2500GR Light blue,normal	4*5 D2
PS00034	Projectile	911812107	Grooved 30N/3000GR Brown,normal	4*5 D2
PS00035	Projectile	911812074	Undulated (weave) 22N/2200GR White,normal	4*5 D2
PS00036	Projectile	911812075	Undulated (weave) 25N/2500GR Light blue,normal	4*5 D2
PS00037	Projectile	911812076	Undulated (weave) 30N/3000GR Brown,normal	4*5 D2
PS00038	Projectile	911812143	Diamond Knurled 22N/2200GR White,normal	4*5 D2
PS00039	Projectile	911812145	Diamond Knurled 25N/2500GR Light blue,normal	4*5 D2
